Yamaha PSRE473

was £349.00

£298.00

Qty





    The PSR-E400 series is an excellent all-round 61-key keyboard that is ideal as a starter instrument but also represents a robust alternative for experienced players. The latest PSR-E473 features a newly developed tone generator that delivers stunning improvements in sound quality as well as high quality effects such as delays.

    • 820 Voices and Super Articulation Lite Voices
    • 290 Styles
    • 2 channels/41 types of DSP insertion effects
    • Quick Sampling
    • Groove Creator
    • Live Control Knobs, Motion Effect functionality, pitch bend wheel
    • Mega Boost
    • Direct Category Access buttons
    • USB Audio Recording/Interface
    • Mic input and vocal effects
    • Individual L/R outputs

    Sound like a pro!

    The PSR-E473 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world.

    Voices

    The PSR-E473 expands on previous generations with an increased internal storage capacity that allows Yamaha to provide more, higher-resolution instrument Voices. Enjoy 820 realistic, expressive instrument sounds from here and around the world with pro-level sound quality.

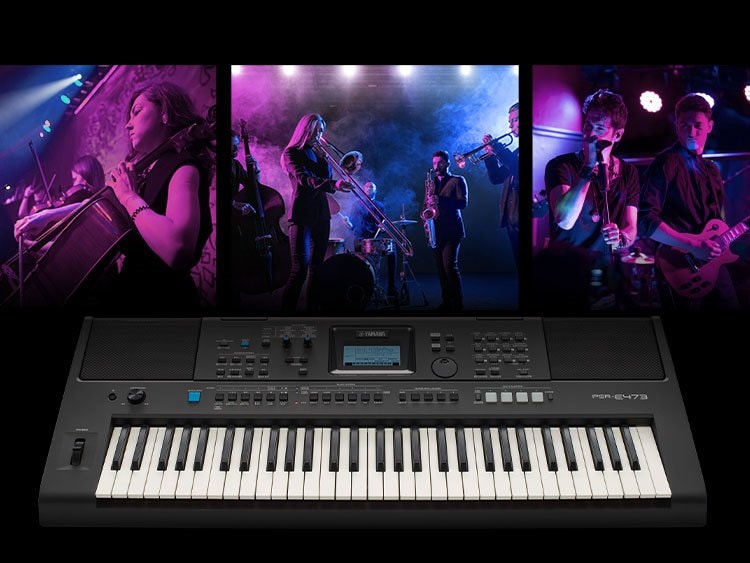

    Styles

    Choose from 290 automatic accompaniment Styles including rock, dance, and jazz as well a wide range of musical genres from around the world. Experience the thrill of playing in your very own band as the Styles respond to your left hand with just the right rhythms, bass, and chords.

    Express yourself

    Yamaha revamped the control panel and LCD, phased out the numeric keypad, added Direct Category Access buttons.

    The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative.

    With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you're hearing in your head.

    Connect and share

    A variety of connectivity options provide all the support you need for practicing, playing, and performing. Plug in a microphone to try your hand at singing while playing, use the Rec'n'Share app to share your music with the world, and hook into PA systems to perform on stage.

    Quick Sampling

    Quick Sampling

    Capture sound from outside of your instrument using the AUX input, microphone input or even by importing files from a USB storage device, and then play those sounds directly from your keyboard. The possibilities are endless!

    Live Control Knobs

    Live Control Knobs

    The two Live Control Knobs make it easy to manipulate and interact with the sound you produce as you play. The ability to set the filter cutoff frequency to change the brightness of the sound and control effects in real time helps bring your performances to life.

    Groove Creator

    Groove Creator

    With Groove Creator, buttons and knobs are all you need to create contemporary electronic music and sound like a pro.

    Motion Effect

    Motion Effect

    The Motion Effect function lets you instantly add effects while you play that can, morph the sound with a filter, create pitch risers, add tape stop effects & slices, or other new dynamic sound effects. All by simply holding down the button!

    USB Audio Recording/Interface

    USB Audio Recording/Interface

    Use the USB To Device port to record and play back audio files of your music from USB flash drives.

    Use the USB To Host port to send and receive audio and MIDI data to and from computers and smart devices with studio-quality.

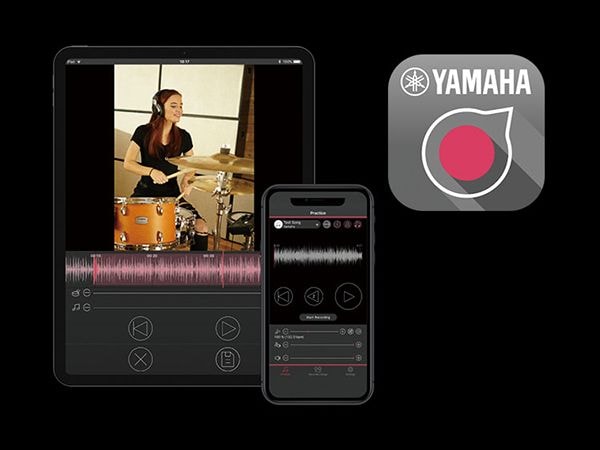

    Rec'n'Share

    Rec'n'Share

    Use the Rec'n'Share app to connect your instrument to a smart device, and then create and share audio and video recordings of you playing along with your favorite songs.



    Dimensions Width 992 mm (39-1/16”)
    Height 136 mm (5-3/8”)
    Depth 404 mm (15-7/8”)
    Weight Weight 7.0 kg (15 lb, 7 oz) (not including batteries)
    Keyboard Number of Keys 61
    Touch Response Yes (Soft, Medium, Hard, Fixed)
    Type Organ-style
    Other Controllers Pitch Bend Yes
    Art. Switches Yes
    Control Knobs 2
    Display Type LCD
    Backlight Yes
    Panel Language English
    Tone Generation Tone Generating Technology AWM Stereo Sampling
    Polyphony Number of Polyphony (Max.) 64
    Preset Number of Voices 820 (294 Panel Voices + 28 Drum/SFX kits + 40 Arpeggio + 458 XGlite Voices)
    Featured Voices 3 Live! Voices, 9 Sweet! Voices, 6 Cool! Voices, 14 Super Articulation Lite Voices
    Compatibility GM Yes
    XGlite Yes
    Types DSP DSP1: 41 types, DSP2: 12 types
    Reverb 12 types
    Chorus 5 types
    Master EQ 4 types
    Functions Dual/Layers Yes
    Split Yes
    Melody Suppressor Yes (w/ pan adjustment)
    Crossfade Yes (between Internal Sound and External Audio)
    Preset Number of Preset Styles 290
    Fingering Multi finger, Smart Chord
    Style Control ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL, TRACK ON/OFF
    Other Features One Touch Setting (OTS) Yes
    Expandability Expansion Style 10
    Compatibility Style File Format (SFF)
    Preset Number of Groove 35
    Number of Sections 5 (4 Sections + 1 Musical Climax/Ending)
    Preset Number of Preset Songs 30
    Recording Number of Songs 10
    Number of Tracks 6 (5 Melody + 1 Style/Groove Creator)
    Data Capacity Approx. 19,000 notes (when only “melody” tracks are recorded)
    Compatible Data Format Playback SMF (Formats 0 & 1)
    Recording Original File Format (SMF 0 conversion function)
    Recording Time (max.) 80 minutes (approx. 0.9 GB) per Song
    Format Playback WAV (44.1 kHz, 16 bit, stereo)
    Recording WAV (44.1 kHz, 16 bit, stereo)
    Sampling Type One-shot, Loop
    Samples (Preset/User) 4
    Sampling Time Approx. 9.6 sec
    Sampling Sources AUX IN, MIC INPUT, USB audio interface, WAV format files
    Sampling Format Original File Format (16 bit, stereo)
    Sampling Rate 44.1 kHz
    USB audio interface 44.1 kHz, 16 bit, stereo
    Registration Number of Buttons 4 (x 8 banks)
    Control Freeze
    Overall Controls Metronome Yes
    Tempo Range 11 – 280
    Transpose -12 to 0, 0 to +12
    Tuning 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
    Octave Button Yes
    Scale Type 5 types
    Miscellaneous PIANO Button Yes (Portable Grand Button)
    Other Functions Mega Boost, Motion Effect (57 types)
    Voices Harmony/Echo 26 types
    Arpeggio 152 types
    Storage Internal Memory Approx. 1.72 MB
    External Drives USB flash drive
    Connectivity DC IN 12 V
    AUX IN Stereo mini jack x 1
    Headphones Standard stereo phone jack x 1
    Sustain Pedal Yes
    USB TO DEVICE Yes
    USB TO HOST Yes
    OUTPUT Standard phone jack x 2
    Microphone Standard phone jack x 1
    Amplifiers 6 W + 6 W
    Speakers 12 cm x 2
    Power Supply AC Adaptor PA-150 or an equivalent recommended by Yamaha, or six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable (HR6) batteries
    Power Consumption 9 W (When using PA-150 AC adaptor)
    Auto Power Off Function Off/5/10/15/30/60/120 (minutes)
    Included Accessories Music Rest Yes
    Song Book Download from Yamaha web site
